STM32 WLx5C Breakout

OSH Park PCB for WLE5 Breakout

This OSH Park project is a starting point for a few different projects that will use the STM32 WLx5C series of sub-GHz RF Cortex-M4 processors.

The 48-pin Quad Flat Pack (-C) footprint comes in a few different versions with the same pin-out:

DesignationFeatures
STM32WLE5CARM Cortex-M4. Includes LoRa modulation
STM32WL55CARM Cortex-M4 and Cortex-M0+. LoRa
STM32WL54CARM Cortex-M4 and Cortex-M0+. No LoRa

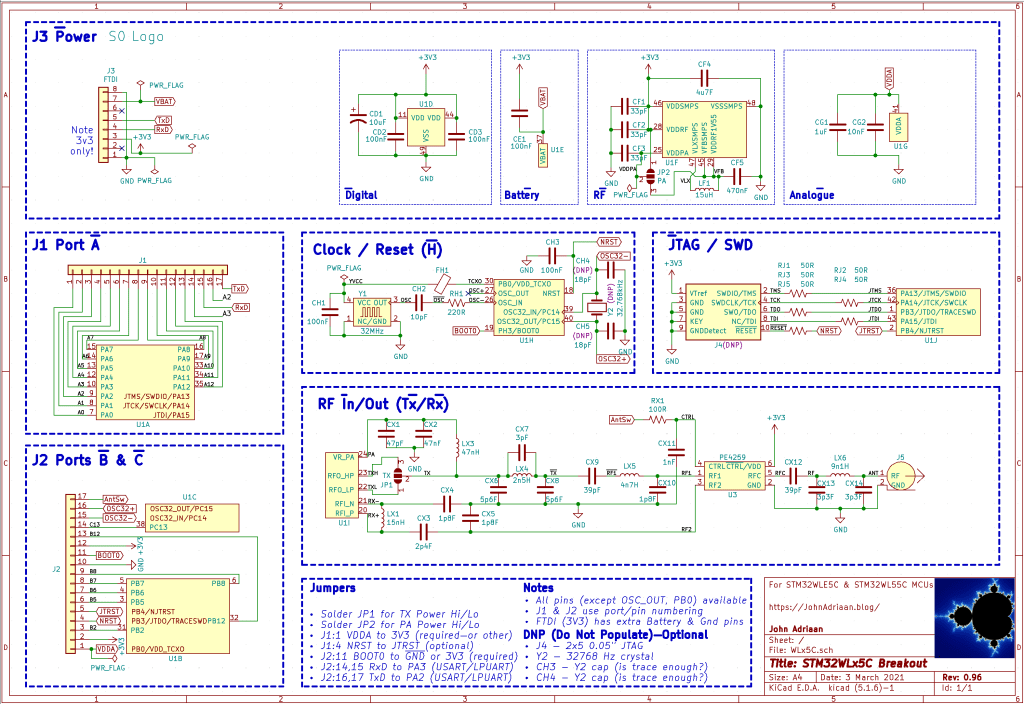

This schematic is for the STM32WLx5C Breakout board

It’s (very) small, to fit in small places, with 0.05″ headers. But it has all the pins broken out for anything I need to do. There is also a baseboard with more usual 0.1″ pitch connectors to help prototyping.

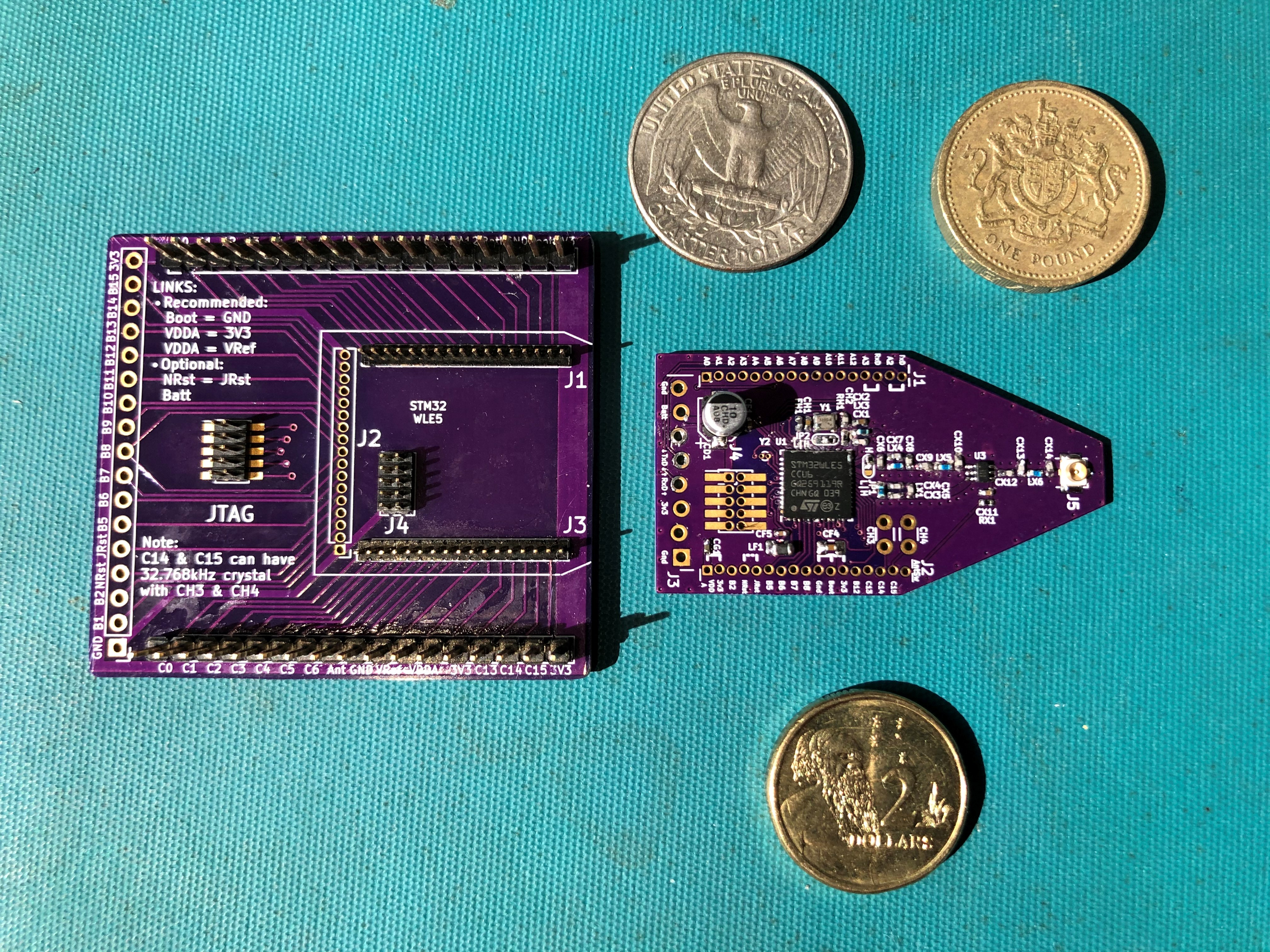

STM32 WLE5C Breakout, with baseboard and US Quarter, UK Pound and Australian $2

Fresh off my soldering iron, I haven’t actually powered it on yet! I’ve tested that power and ground aren’t shorted, but other than that… wish me luck!
